Triton Topaz T80si and T100si Electric Shower Replacement – With Triton T150+ Thermostatic

The Triton Topaz range of Electric Showers caught my eye as they were an oval shape and neatly facilitated rear entry for the 10mm Electric Cable and 15mm Water Pipe. This enabled the shower unit to be mounted with the Water Pipe completely out of sight which I found appealing. Over the years I had a few variations:

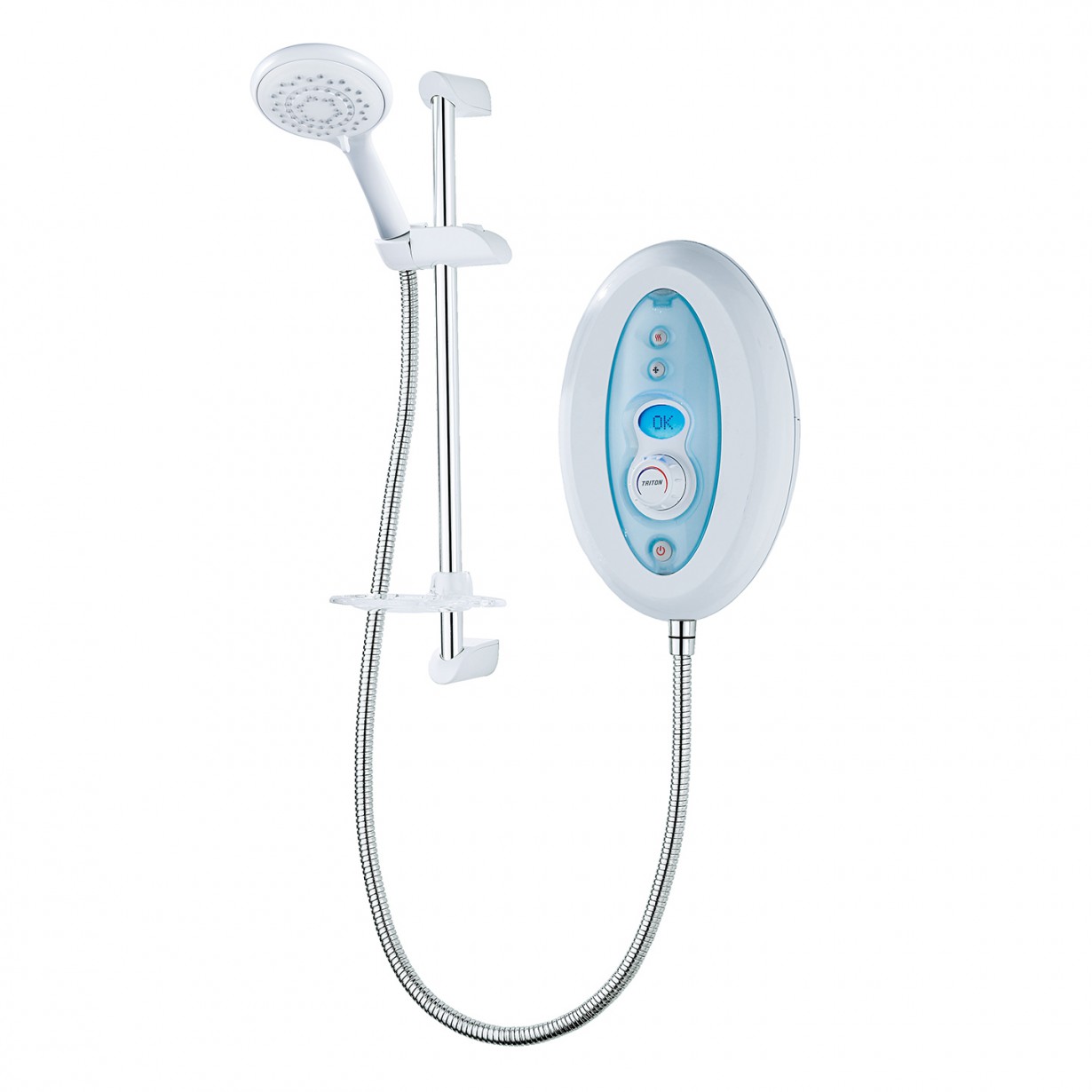

I installed the T100si shown below and used it regularly for many years – until the digital display stopped working.
Triton Topaz T100 Electric Shower

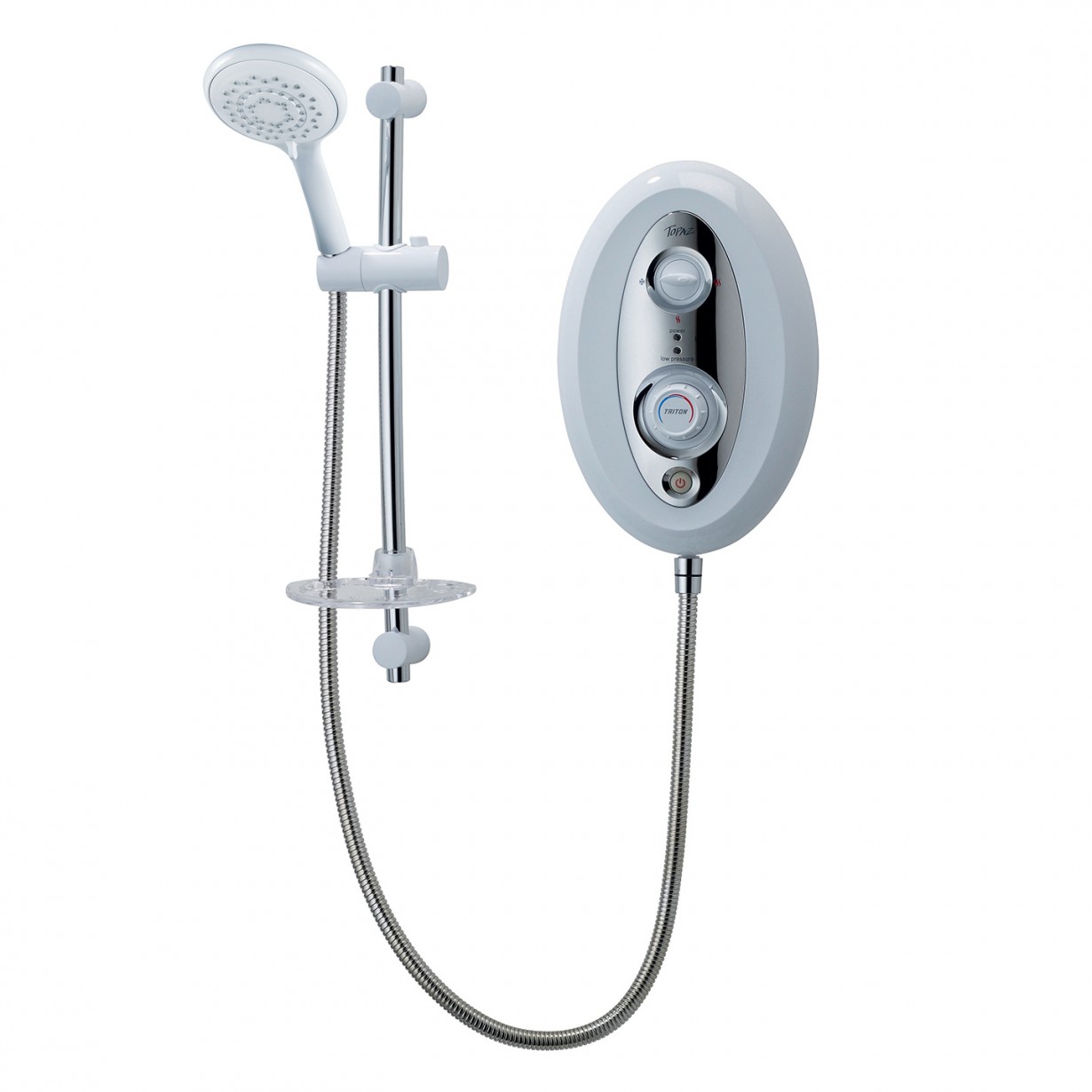

It was subsequently replaced with a Triton Topaz T80si shown below to ensure the digital display did not malfunction. As you can see the T80si is not fitted with a digital display, just an old school dial.
Triton Topaz T80 Electric Shower

However, despite the difference in controls, the T80si and T100si – occupied exactly the same space on the wall and shared the same casing design hence the change was very straight forward as the 15mm Water Pipe and 10mm Electric cable connections were identically placed.

After a number of years the T80si had significantly reduced in price and when water appeared to be coming from around the hose connection, I simply picked the reduced price unit up from Screwfix and changed it out.

All went extremely well for a further number of years, until last week when the T80si began to produce cold water. However, rather than play about with testing and spare parts, I embarked on a further purchase of a T80si. I browsed and browsed and browsed, only to find that the Triton Topaz range was obsolete – my bubble had finally burst as the best I found were 2 on ebay being sold for spares.

I resigned myself to the fact that I was going to have to upgrade – which did not appear to be straight forward as I really wanted to keep the rear entry feature which appeared to be unique to the Triton Topaz range. I searched and searched for an equivalent but it was like a needle in a haystack.

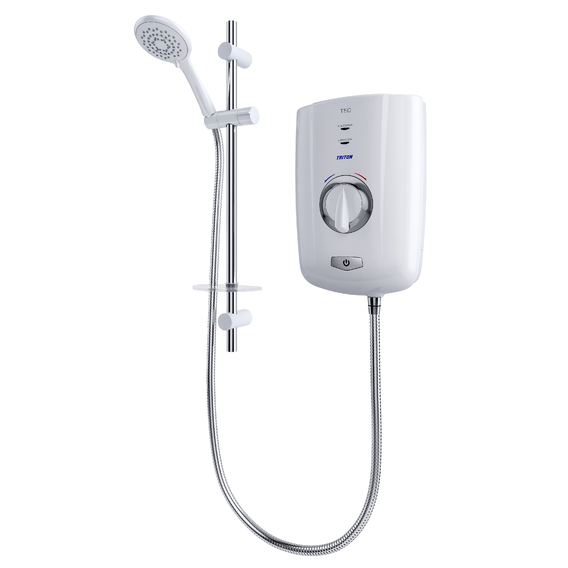

Long story short – I found the Triton T150+ Thermostatic Electric Shower shown below, which was actually a better fit.
Triton T150+ Thermostatic Electric Shower

Due to the Oval Shape, although the the Triton Topaz models facilitate rear entry of services, you can see from the below that the mounting screw location on the bottom right could easily interfere with the water pipe embedded in the wall – I recall taking great care in getting the drill to just miss the pipe.

Triton Topaz T100si - Services

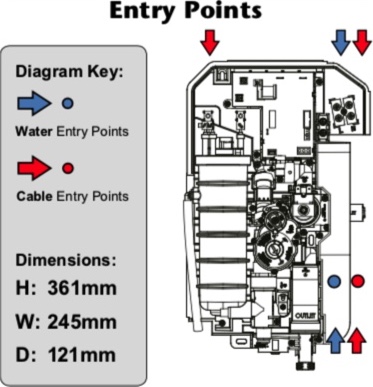

However, in the T150+ Thermostatic, you can see from the below that the services enter the rear in the same way but all mounting screws are to the left, no-where near the pipe entry line, so the risk to damaging the water pipe embedded in the wall is removed.

Triton T150+ Thermostatic - Services

Replacement Strategy
The only point to note is that the T100si rear entry 15mm Water pipe connection faces left, whereas the T150 rear entry 15mm Water pipe connection faces down, hence the left facing elbow on the water pipe needs to be rotated clockwise through 90 degrees to enable the connection to be made. The electrical connection is exactly the same, but the earth connection is made via a connecting block rather than a shell clamp. Very straight forward indeed.

In a nut shell – if you are looking to replace a Triton Topaz T80si or T100si – the Triton T150+ Thermostatic is the one to buy. It comes in 8KW or 9KW models and is approved for use in care homes due to the low resistance controls which keep water temperature accurate to within 1 degree C. As an added bonus, when fitted the T150+ completely covers the holes in the wall left following removal of the T80si. You can get one of these on Amazon.

Last update was on: 07/12/2019 12:23
Warning – Electric showers are very high power electrical appliances fed from the domestic water main which can result in fatal electric shock and significant water damage if not properly isolated – so please ensure isolation of water and power to the shower is undertaken by a competent person.
